FlowStop Mechanical Minis - M&M Series can be mixed or matched to meet specific requirements. Call for details and pricing. We also design and develop custom pipe plugs, call with your specs.
FLOWSTOP bringing technology to the forefront for all hazmat applications.

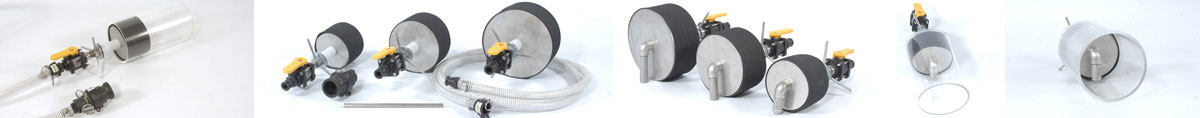

MECHANICAL MINIS (M&M SERIES) FEATURES
- 6'' Plug.................. 9 lbs. Total length 17''
- 8'' Plug.................. 14 lbs Total length 17 ''
- 10'' Plug................ 21 lbs Total length 17''
- Set of three (3) Mechanical Plugs includes 3/4'' X 10'
suction / drain hose
- Adapter 3/4'' female camlock to 2''male camlock
(Polypropylene camlocks)
- Pelican 1630 storage case with custom Insert marked
with reflective
Indentifable Flowstop Decal
Total weight of case with units 86 lbs
- Each plug is constructed of stainless steel plates and
flow through tubing
- 4'' Urethane Disc with Nitrile rubber sleeve and 3/4''
Polypropylene ball valve
(Plugs may be purchased separately, mixed or matched)
|
 |
SPECIFICATIONS
Mechanical Minis Transport Case Specifications |
 |
| EXTERIOR DIMENSIONS |
INTERIOR DIMENSIONS |
(L x W x D)
31.28” x 24.21” x 17.48” (79.4 x 61.5 x 44.4 cm) |
(L x W x D)
27.70” x 20.98” x 15.50” (70.3 x 53.3 x 39.4 cm) |
| LID DEPTH |
BOTTOM DEPTH |
| 3.25” (8.3 cm) |
12.14” (30.8 cm) |
| TOTAL DEPTH |
WEIGHT with foam |
| 15.50” (39.4 cm) |
36 lbs. (22.23 kg) |
| WEIGHT without foam |
BUOYANCY MAX. |
| 31 lbs. (14.06 kg) |
350 lbs. (158.76 kg) |
| RANGE TEMPERATURE |
NO. OF WHEELS |
| -40 / 210° F (-40 / 99° C) |
4 |
|
