FlowStop Model E2945FT

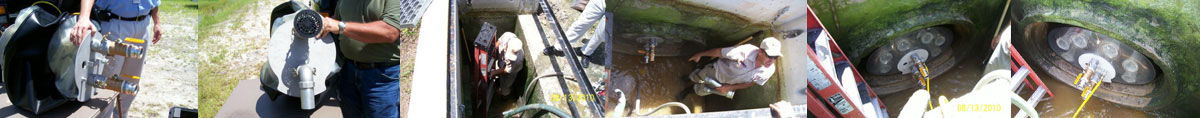

Flowstop offers Elliptical inflatable plugs that are stoppers or flow throughs:
Flowstop Model E2945FT is a dual 2'' Flow Through inflatable.
Call for details and pricing. We also design and develop custom pipe plugs, call with your specs.


FEATURES

  • E2945FT Dual Port Model
  • 1- 90 degree ELL available in aluminum or polypropylene **
    with extension tubes
  • 2 -2" (option) brass or polypropylene ** ball valves
  • 1 plastic strainer for upper rear port intake
  • 1- 10ft. grounding cable with clamps and grounding peg on
    face plate
  • 2 piece air hose
  • 25' 1/2" air hose w/couplers
  • 1780 Pelican case
  • Elliptical stoppers are equipped with aluminum plates front and rear
    of plug with front plate equipped with welded D Ring.

** Same as regular dual ports however, no nitrile sleeve **

Each E Stopper model comes with:
  • 1- 25' 1/2" air hose with couplers
  • 1- 25' 1/2" tether rope for retrieval
  • 1- 2 piece air hose for inflation & deflation

    ** Recommended

    ** Storage & carry cases are OPTIONAL **
Flowstop 1218

SPECIFICATIONS

Model E2945FT Transport Case Specifications
EXTERIOR DIMENSIONS (L x W x D) INTERIOR DIMENSIONS (L x W x D)
19.78” x 15.77” x 7.41” (50.2 x 40 x 18.8 cm) 18.06” x 12.89” x 6.72” (45.9 x 32.7 x 17.1 cm)
LID DEPTH BOTTOM DEPTH
1.79 ” (19.2 cm) 4.93” (18.5 cm)
TOTAL DEPTH WEIGHT with foam
6.72” (37.8 cm) 9.35 lbs. (4.24 kg)
WEIGHT without foam BUOYANCY MAX.
8.29 lbs. (3.76 kg) 63 lbs. (28.58 kg)
RANGE TEMPERATURE
-40 / 210° F (-40 / 99° C)
